What Are Relational Links?
Relational linking is a dynamic feature designed to enhance the way users manage and navigate their data. It allows for the creation of connections between various types of records within the database, such as documents, contacts, events, tasks, and even web pages. This guide will provide a straightforward exploration of what relational linking entails, how it functions, and the benefits it offers to users of doogie® and other editions of the software.
What is Relational Linking?
At its core, relational linking refers to the process of establishing a link or association between two or more records within a single Repository. These links are not just superficial; they create a meaningful relationship between data entries that can reflect real-world connections, such as linking a contact with meetings, projects with tasks, or notes with relevant emails.
How Does Relational Linking Work?
Relational linking operates through a user-friendly interface, where users can use the main toolbar [Link] command or use context menus to create links between items. Here’s a step-by-step guide on how it typically works:
Selecting the source Item
First, you choose the item you want to link. This could be anything from a contact to a task. Simply navigate to the relevant section, then choose the document or record, you wish to link from.
Once you've found the document or record you want to link from, now you decide if you want to link the whole item, he whole record, or just some text within the record.
What type of link would you like to create?
There are two types of links you can generate:
1. Whole Document/Record Linking
Linking an entire document, message, contact, task, event, or noteboard block is particularly advantageous as it automatically creates a bi-directional link. For example, if you link an email message to a task, when you later view the task, you will also see a link returning to the original email message. This facilitates seamless navigation between related items.
2. Selected Text Hyperlinking
This option allows you to hyperlink specific text within any rich text editor. You may choose to link text from a document or from the textual comments within a record's details. The hyperlink functions similarly to a web page link, where you can direct to a destination record, a website URL, a telephone number, or a specific text position in a different document.
1. Whole Document/Record Linking
Linking an entire document, message, contact, task, event, or Noteboard block is particularly advantageous as it automatically creates a bi-directional link. For example, if you link an email message to a task, when you later view the task, you will also see a link returning to the original email message. This facilitates seamless navigation between related items.
Choose the Linking Tool

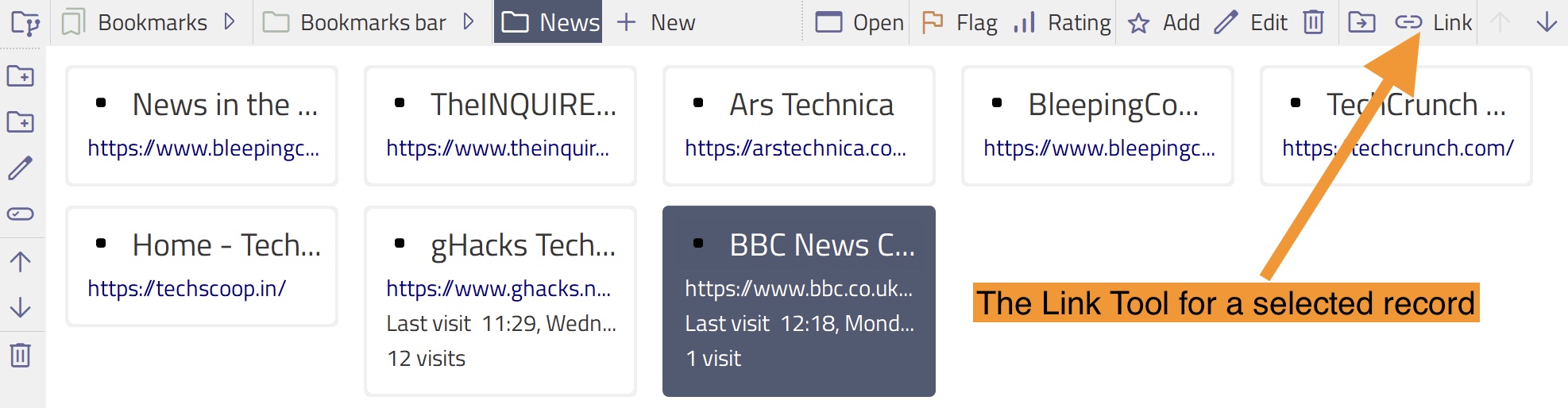

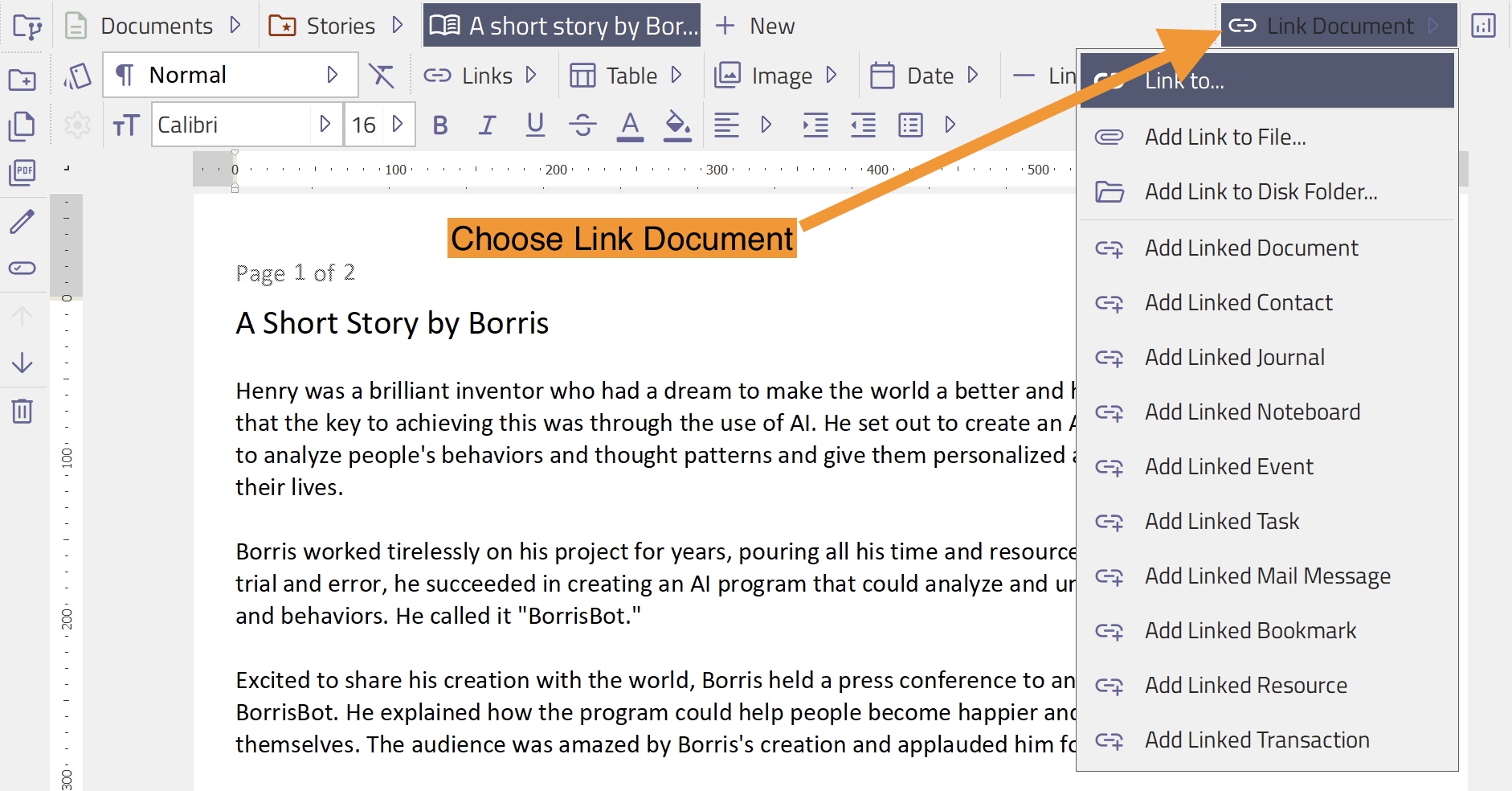

Open the linking tool, typically appearing as [Link] then choose [Link To A Repository Item] or [Link to...].
Select the Target Item

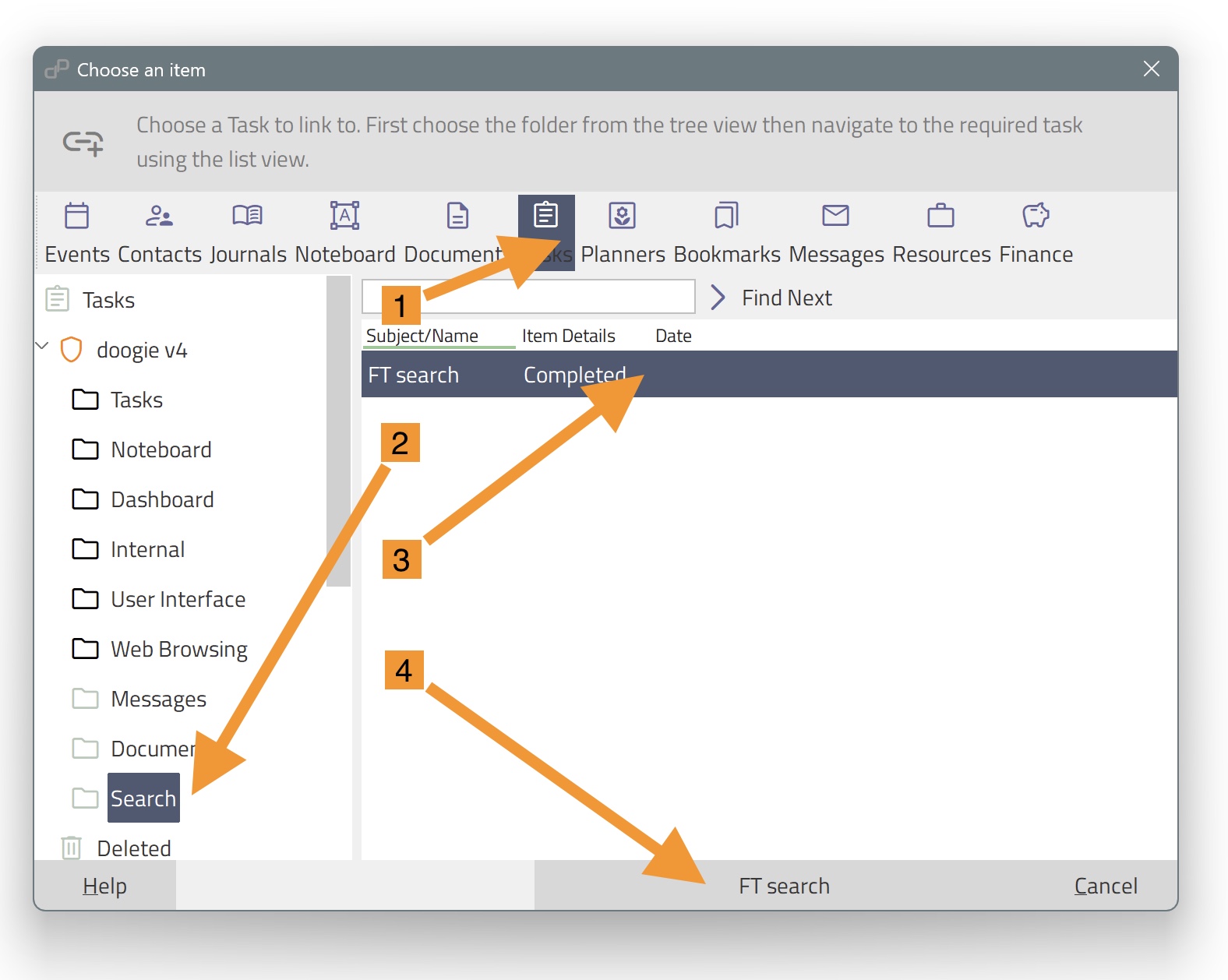

Next, you select the item to which you want to create a link. This can be done by navigating through a list or searching for a specific record.
Establish the Link

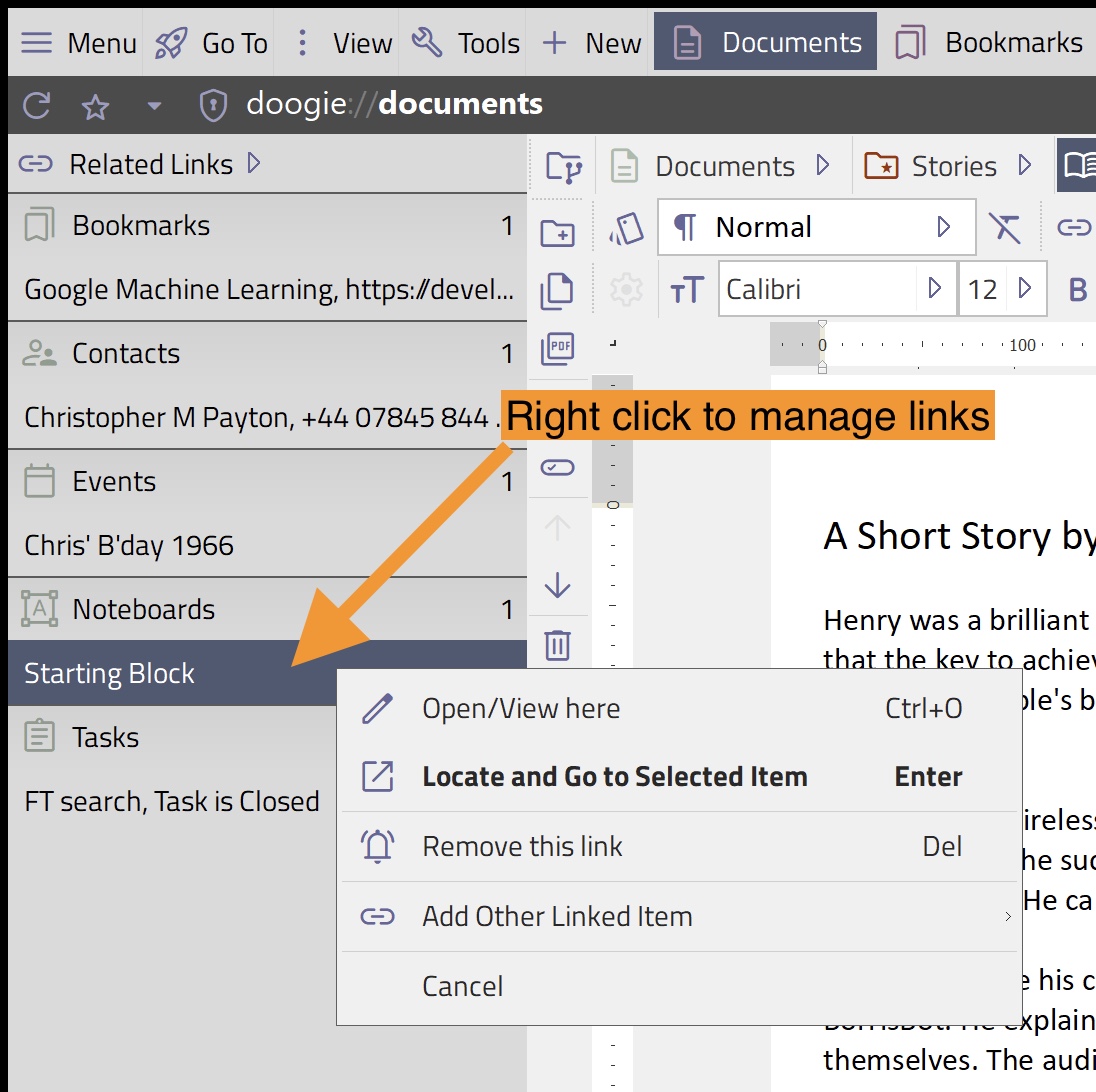

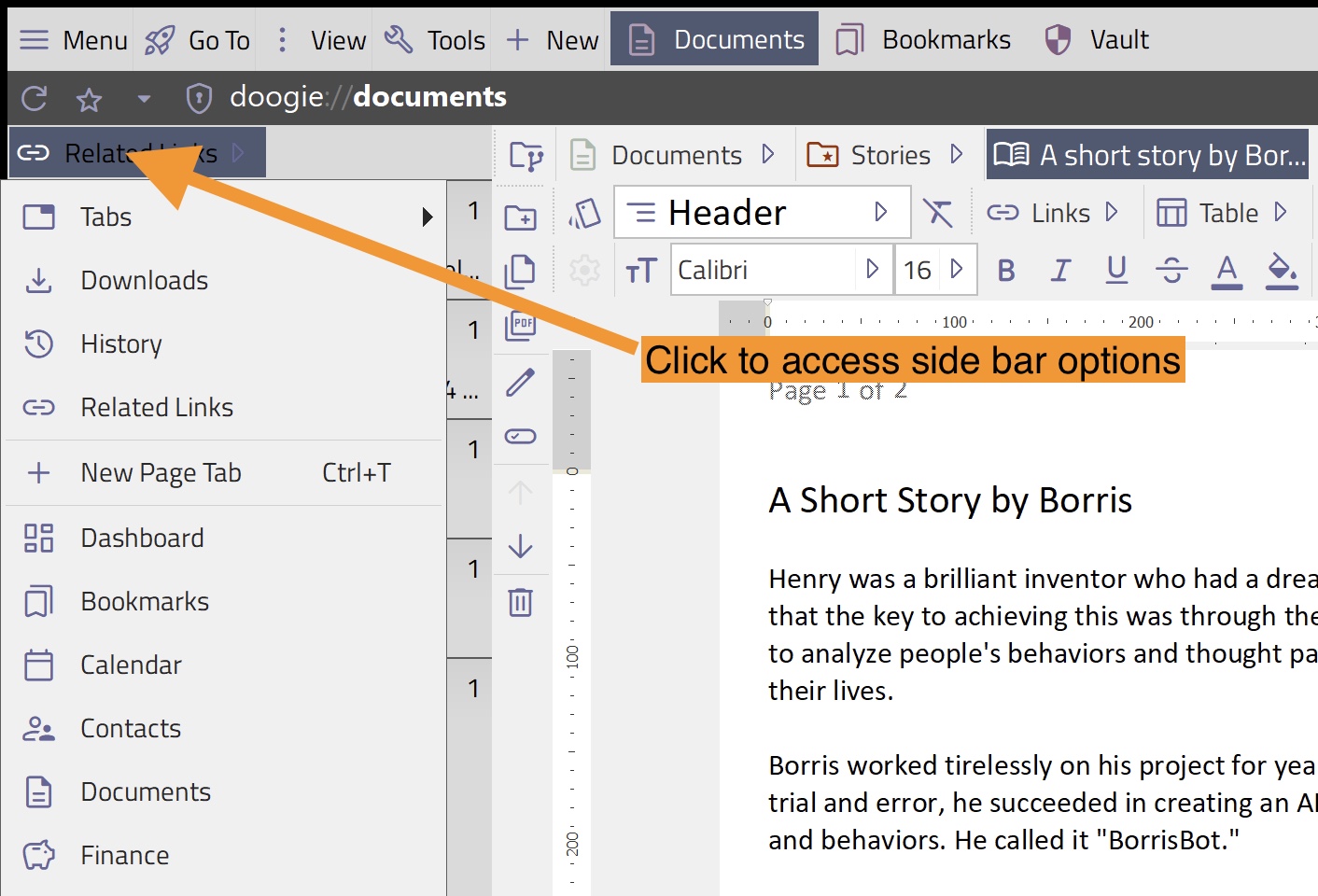

Finalise the link by confirming your choices. The system then creates a relational link that is recorded in the repository. In order to see the Relational Link, navigate to the [Related Links] in the Side Bar. Whichever record or document you have displayed in the main area, the Related Links list will display your created relationships. You may notice some links appear on their own, such as the case with Email. When you select an Email message and you have a Contact already within your Repository with a matching email address, that link will appear automatically. Likewise when you select a Contact, any matching email messages will automatically show without the need for manual linking.
2. Selected Text Hyperlinking
This option allows you to hyperlink specific text within any rich text editor. You may choose to link text from a document or from the textual comments within a record's details. The hyperlink functions similarly to a web page link, where you can direct to a destination record, a website URL, a telephone number, or a specific text position in a different document.
Linking a selection of text to create a hyperlink to a document.

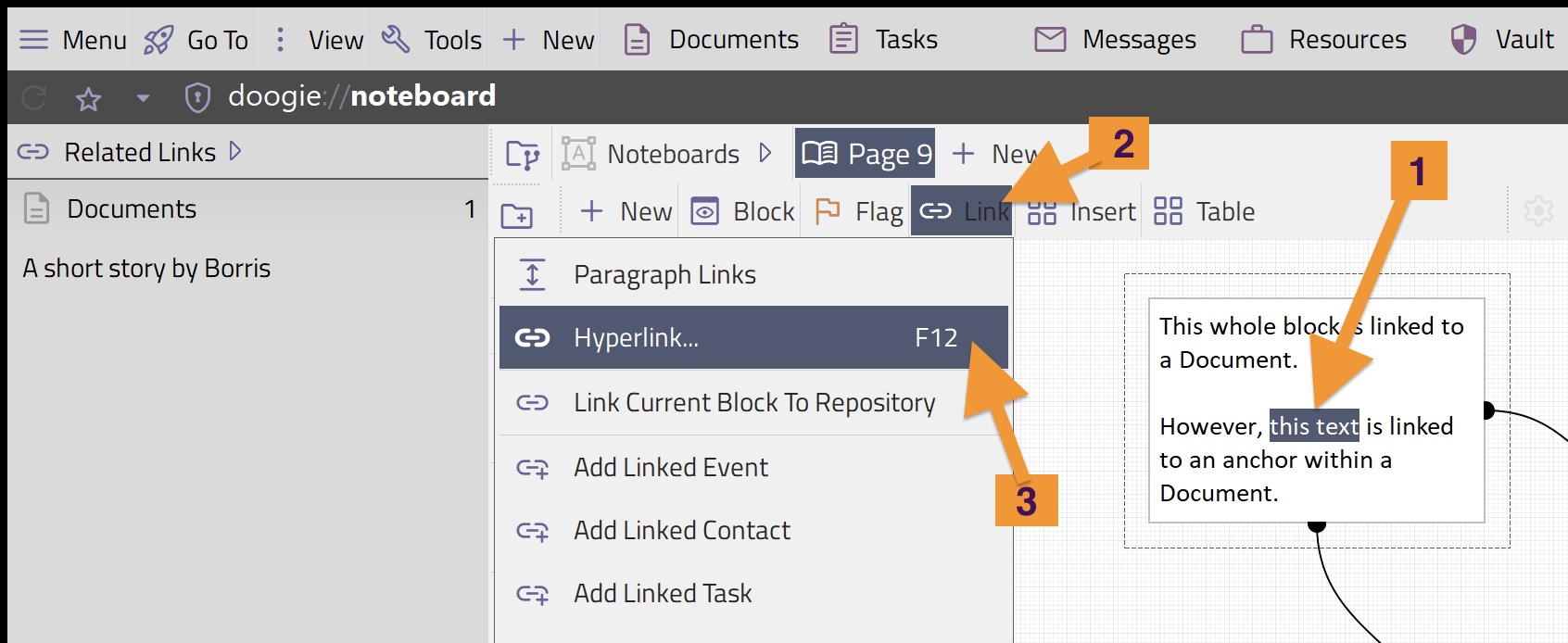

1. Select the text within the block so the text is highlighted.

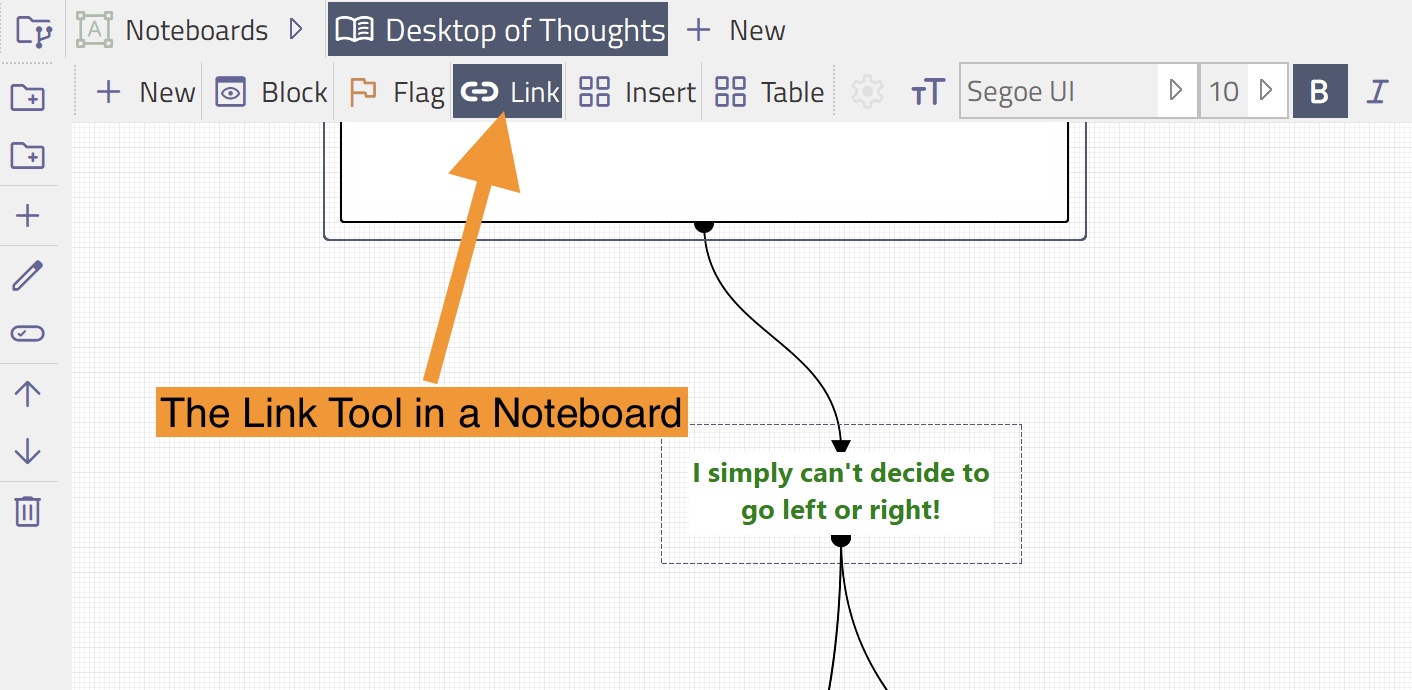

2. Choose [Link] from the toolbar.
3. Choose [Hyperlink...] from the menu.

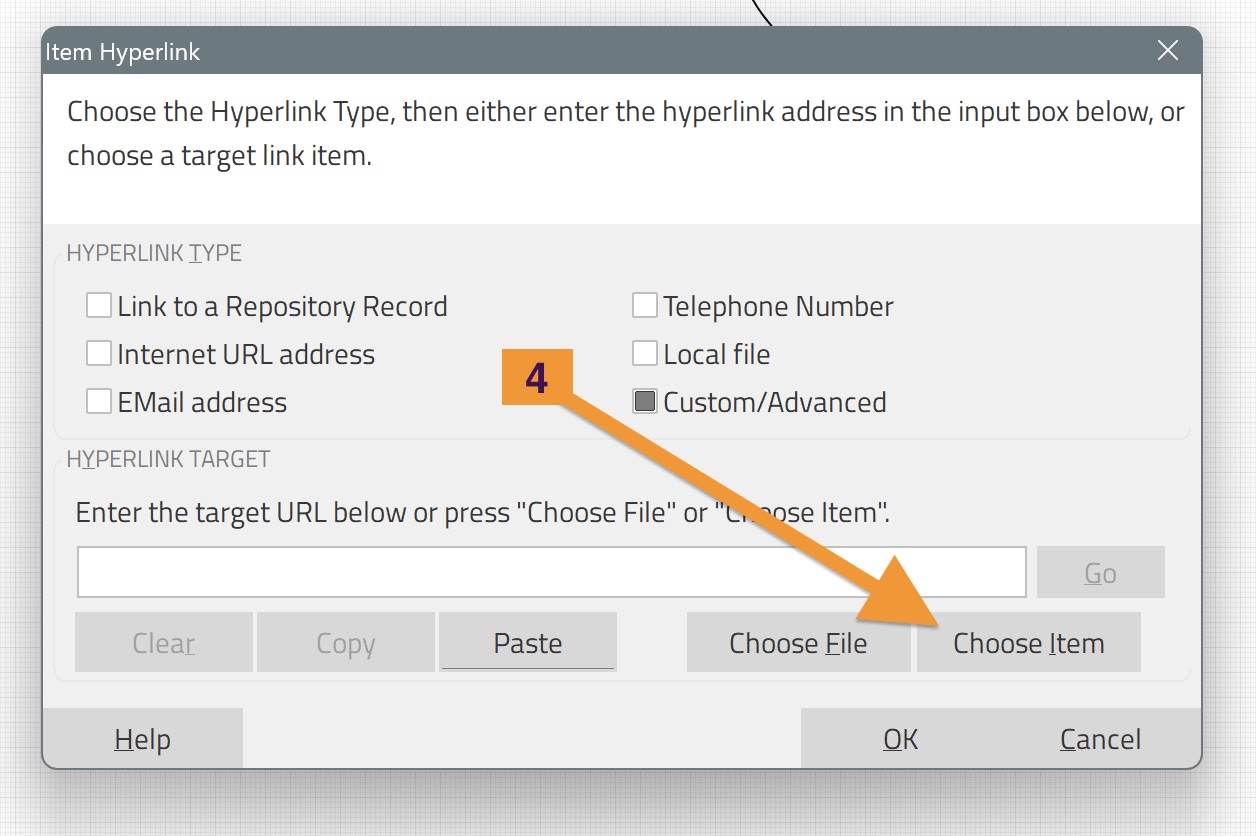

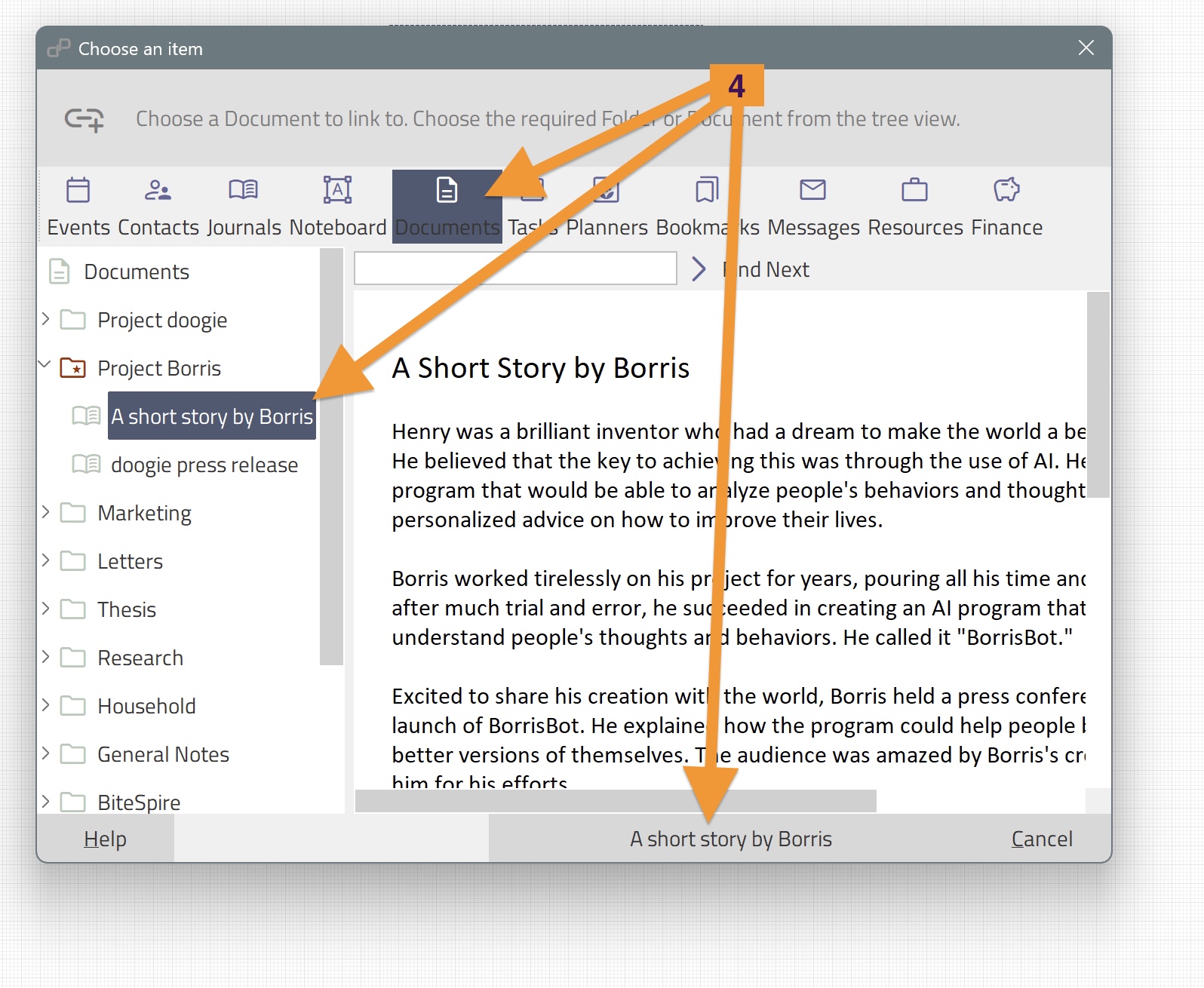

4. Choose an event, record item, document, or Noteboard block. In the case of a wanting a Journal or a Calendar event, a Date Calendar will be displayed instead of a tree. Simply navigate to the date required and click on the selection of dates to show the events needed.

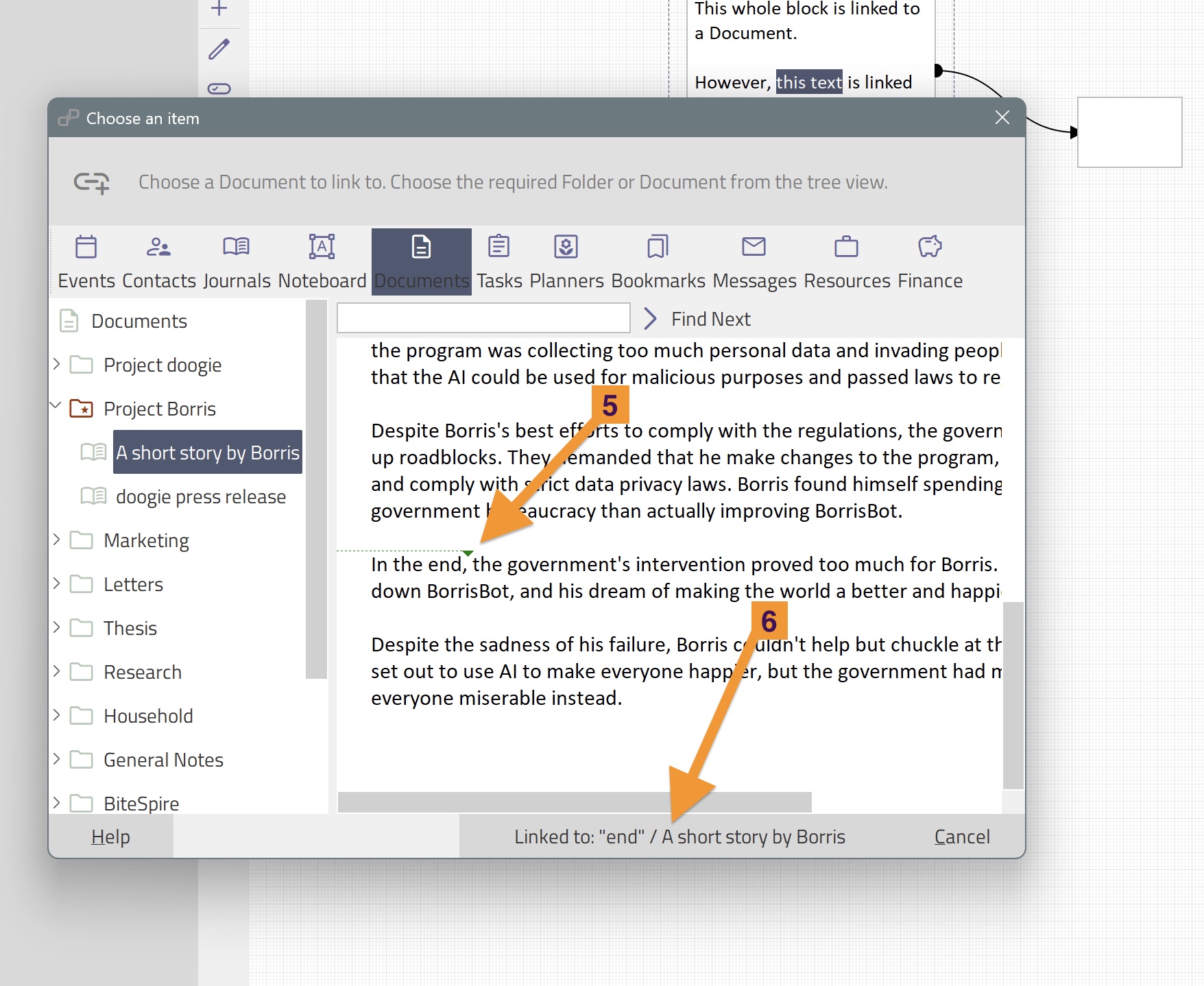

5. When choosing a Document, if it contains a paragraph link within the text, you can click on the marker arrow so the name of the anchor appears on the [OK Button].
6. Confirm your choice by clicking on the large button which displays the name of the document, record, and/or the paragraph link.
7. You will now notice your hyperlink has been generated according to your selection of linking. If this looks fine, then confirm your options by clicking [OK].

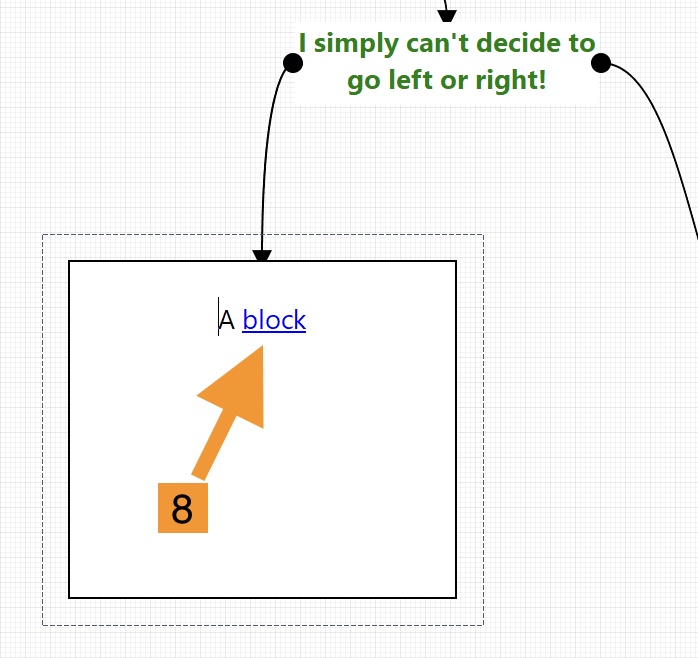

8. After confirming your hyperlink, your selected text is formatted accordingly. To activate the link, you can hold down [Ctrl] and left click on your new hyperlink. The application will then take you to the Document, at the position you’ve chosen, or the record in case of a non-document.
Benefits of Relational Linking
Relational linking offers numerous advantages that help in managing information efficiently and effectively. Some of these benefits include:
Enhanced Data Organisation
By linking related records, you can organise your data more logically, making it easier to find, access, and analyse information.
Improved Workflow
Relational linking can streamline workflows by providing quick access to related records. For example, linking a contact to all related documents and emails can save time when preparing for meetings or managing communications.
Better Information Retrieval
It becomes simpler to retrieve comprehensive information on a specific subject, project, or individual when all relevant data is interconnected.
Customised Associations
Users can tailor the associations between records according to their specific needs and preferences, which enhances the software’s flexibility and utility.
Practical Applications of Relational Linking
In practical terms, relational linking can be applied in numerous scenarios. For instance, a user managing a project might link tasks to specific project documents and key contacts involved in the project. Another example could be a user compiling research, who might link various notes and references to main research documents for easy reference.
Relational linking is a powerful feature that transforms the management of data from a linear, isolated task into a dynamic, interconnected process. By allowing for the creation of meaningful links between different types of records, it not only makes the data more accessible but also significantly more useful. Whether for personal information management or for business needs, understanding and utilising relational linking in doogie®PIM can greatly enhance productivity and efficiency.
